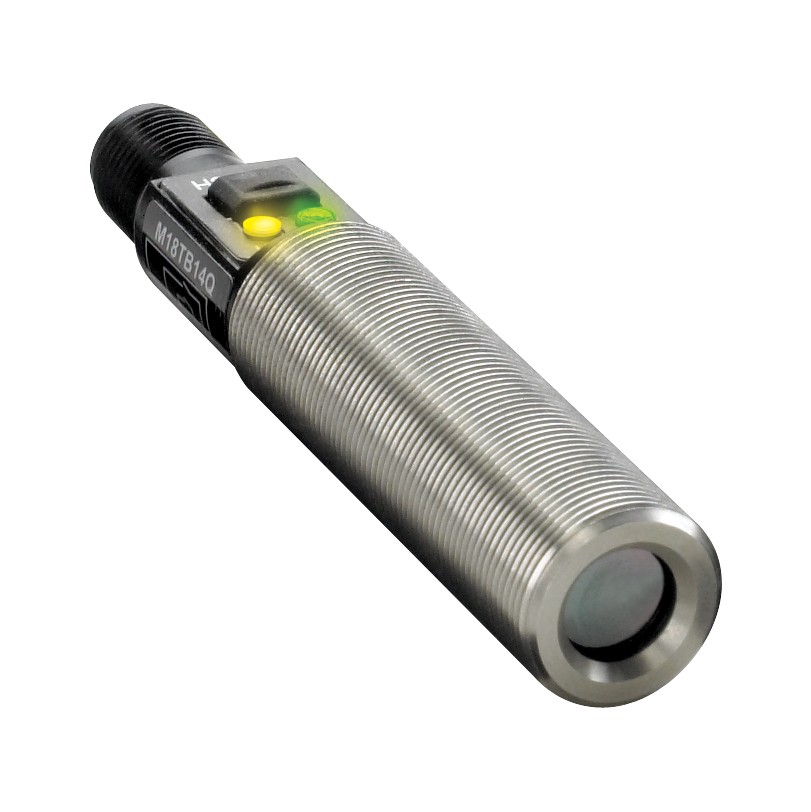

1.其工作原理就是检测物体辐射的红外线能量
2.可检测出移动产品或静止产品小至3°C的温度差异
3.检测范围为0°-300°C
4.提供模拟量输出或开关量输出
5.允许通过PC调整阈值和显示实时信息
6.无需发射器或控制器
7.使用远程或按钮编程
8.可提供三种型号,适合于不同的目标大小和距离
9.是检测高温零部件、监测滚筒、验证模制件是否已弹出、检测热粘接剂等应用的理想之选
Sensing Beam
|
N/A
|
Power
|
DC
|
PC Configurable
|
Yes
|
Sensing Mode (General)
|
Proximity
|
Sensing Mode (Detailed)
|
Diffuse
|
Housing Style
|
Barrel
|
Device Type
|
Sensor
|
Primary Housing Material
|
Stainless Steel
|
Input/Output
|
Analog
|
Indicator
|
LED(s)
|
Connection
|
Integral QD
|
Analog Output Configuration
|
4-20 mA
|
Quick Disconnect Type
|
M12 (Euro)
|
Analog Resolution/Discrete Repeatability
|
± 1% of measurement, or ± 1 °C, whichever is greater
|
Power Supply
|
12-30 V dc
|
Delay at Power-up (ms)
|
1500
|
Adjustments
|
Push Button; Remote Teach
|
Number of Pins
|
5
|
Analog Current Output Rating
|
1 kΩ max @24 V dc, max load resistance = [(Vcc-4 V)/0.02 A] Ω
|
IP Rating
|
IP67
|
NEMA Rating
|
NEMA 6
|
Storage Temperature (°C)
|
-25 to 75
|
Max Operating Temperature (°C)
|
70
|
Min Operating Temperature (°C)
|
-20
|
Warm-up Time (minutes)
|
5
|
Minimum Response Time (ms)
|
25
|
Analog Linearity (mm)
|
From 0 °C to +50 °C: ± 2 °C From +50 °C to +300 °C: ±1 °C or ±1%, whichever is greater
|
Barrel Diameter (mm)
|
18
|
Minimum Window Size (mm)
|
3 °C
|
Remote Teach and Laser Control Input Impedence
|
3 kΩ
|
Feature: Remote Teach
|
Yes
|
Feature: Timing (Hold/Delay)
|
No
|
Feature: Chemical Resistant
|
Yes
|
Feature: Pump-in/ Pump-out
|
No
|
Feature: Quick Disconnect
|
Yes
|
Feature: Health/ Marginal Signal Output
|
Yes
|
Common Ethernet Protocol
|
No
|
IO Link
|
No
|
PROFINET
|
No
|
RS-232
|
No
|
RS-422
|
No
|
RS-485
|
No
|
SSI
|
No
|
Wireless
|
No
|
1-wire Serial Interface
|
Yes
|
Profibus
|
No
|
